UISP Fiber - ONU Router Mode Port Forwarding
Readers will learn how to configure Port Forwarding when using the ONU Router mode feature for UFiber ONUs.
Configuring a Port Forwarding Rule

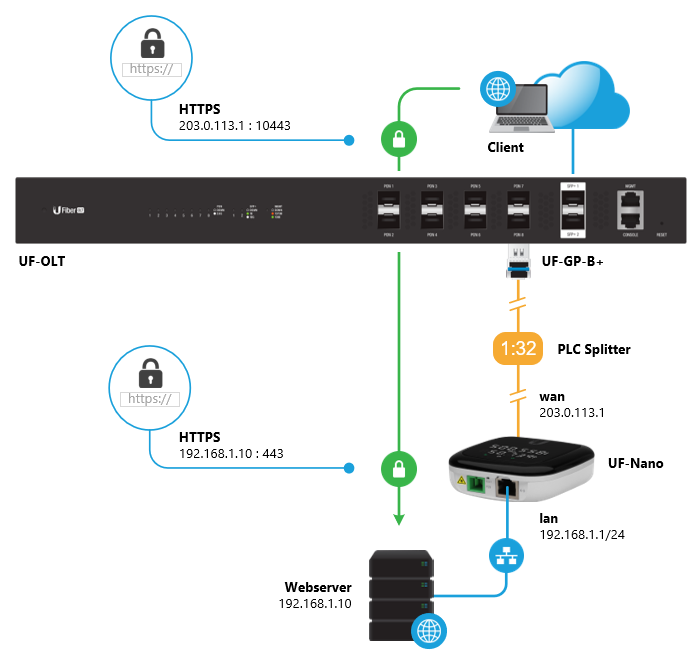

The HTTPS traffic with port 10443 from external clients will be forwarded to the web server at 192.168.1.10.
The default ONU mode is Bridged mode. In order to use the Port Forwarding feature, the ONU must be configured to use Router mode. The ONU Router Mode article has more information on this feature. Follow the steps below to configure the Router mode and Port Forwarding rules:
1. Navigate to the ONU list tab and select one of the connected ONUs.
2. Select the CONFIGURE button to modify the ONU settings.
Admin password: <secret>
Mode: Router
3. Select the Firewall tab to add the Port Forwarding rules.
ONU configuration > Firewall > Port forwarding > Add rule...
Enable: Checked
WAN Port: 10443
Protocol: TCP
LAN address: 192.168.1.10
LAN port: 443
Comment: webserver
4. Apply the changes by clicking on the SAVE button.
