EdgeSwitch & EdgeSwitch X - Device LED Statuses
Overview
This document explains the operational state of an EdgeSwitch (ES) or EdgeSwitch X (ES-X) based on the System LED status.
NOTES & REQUIREMENTS:
This article applies to all EdgeSwitch (ES) and EdgeSwitch X (ES-X) models, with the exception of the EdgeSwitch XP (ES-XP) models.
This article does not apply to the following ES-XP models:
This article does not apply to the following ES-XP models:
- ES-5XP
- ES-8XP
- ES-16XP

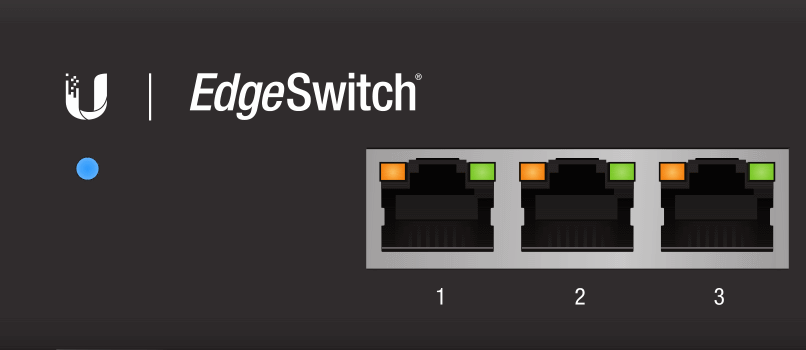

EdgeSwitch Units with System LED
ATTENTION:On the EdgeSwitch (ES) devices, these new system LED patterns only apply when using the latest bootloader version. The EdgeSwitch bootloader needs to be manually updated, see the How to Update the Bootloader for more information.
As of the v1.8.0 EdgeSwitch (ES) firmware release, the device status LEDs have been improved to provide a more clearly defined state of the device. See the tables below for the description and meaning of the different system and port LED patterns.
The table below does not apply to the following EdgeSwitch XP (ES-XP) models:
- ES-5XP
- ES-8XP
- ES-16XP
|
Type of Activity |
Device State/Activity |
LED Pattern |
|
General Status
|
Initial Power On | Steady blue |
| Bootup in Progress | Flashing white | |
| Ready for Use (Not connected to UNMS) |
Steady white | |
| Ready for Use (Connected to UNMS) |
Steady blue | |
| Ready for Use (Unable to connect to UNMS) |
Occasional flashing blue | |
| Device Locate Feature Active | Quick flashing blue | |
|
Troubleshooting
|
Firmware Upgrade in Progress | Alternating blue/white |
| Error A12 (Device Hardware Failure) |
Quick flashing white | |
|
Power On Reset |
Hold reset button for 15 seconds while plugging in the power cord to perform a Factory Reset. | Flashes blue for 2 seconds |
|
Runtime Reset |
Hold reset button for 15 seconds while device is powered on to perform a Factory Reset. | Flashes blue for 2 seconds |
