Overview

Readers will learn how to configure a Policy-Based Site-to-Site IPsec VPN between an EdgeRouter and a Cisco ISR.

Table of Contents

1. Frequently Asked Questions (FAQ)
2. Setting up a Policy-Based VPN
3. Related Articles

FAQ

Back to Top

Setting up a Policy-Based VPN

Back to Top

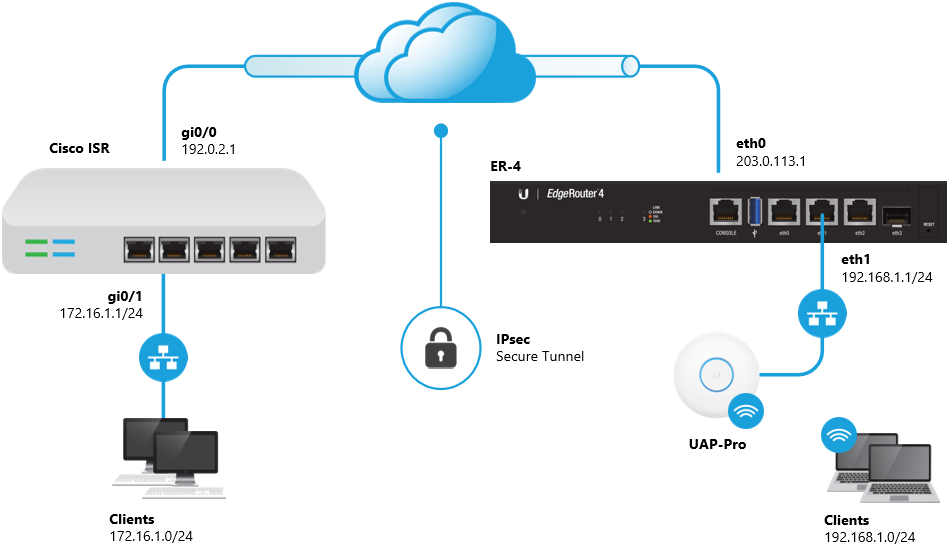

The 192.168.1.0/24 and 172.16.1.0/24 networks will be allowed to communicate with each other over the VPN.

1. Enter configuration mode.

configure

2. Enable the auto-firewall-nat-exclude feature.

set vpn ipsec auto-firewall-nat-exclude enable

3. Create the IKE / Phase 1 (P1) Security Associations (SAs).

set vpn ipsec ike-group FOO0 lifetime 28800
set vpn ipsec ike-group FOO0 proposal 1 dh-group 14
set vpn ipsec ike-group FOO0 proposal 1 encryption aes128
set vpn ipsec ike-group FOO0 proposal 1 hash sha1

4. Create the ESP / Phase 2 (P2) SAs and disable Perfect Forward Secrecy (PFS).

set vpn ipsec esp-group FOO0 lifetime 3600
set vpn ipsec esp-group FOO0 pfs disable
set vpn ipsec esp-group FOO0 proposal 1 encryption aes128
set vpn ipsec esp-group FOO0 proposal 1 hash sha1

5. Define the remote peering address (replace <secret> with your desired passphrase).

set vpn ipsec site-to-site peer 192.0.2.1 authentication mode pre-shared-secret
set vpn ipsec site-to-site peer 192.0.2.1 authentication pre-shared-secret <secret>
set vpn ipsec site-to-site peer 192.0.2.1 description ipsec
set vpn ipsec site-to-site peer 192.0.2.1 local-address 203.0.113.1

6. Link the SAs created above to the remote peer and define the local and remote subnets.

set vpn ipsec site-to-site peer 192.0.2.1 ike-group FOO0
set vpn ipsec site-to-site peer 192.0.2.1 tunnel 1 esp-group FOO0
set vpn ipsec site-to-site peer 192.0.2.1 tunnel 1 local prefix 192.168.1.0/24
set vpn ipsec site-to-site peer 192.0.2.1 tunnel 1 remote prefix 172.16.1.0/24

7. Commit the changes and save the configuration.

commit ; save

1. Enter configuration mode.

configure terminal

2. Create an IKE policy.

crypto isakmp policy 100
 authentication pre-share
 encryption aes 128
 hash sha
 group 14
 lifetime 28800

3. Configure a Transform Set for IPsec.

crypto ipsec transform-set ipsec-ts esp-aes 128 esp-sha-hmac

4. Define the peer address (replace <secret> with your desired passphrase).

crypto isakmp key <secret> address 203.0.113.1

5. Create an Access List that defines the remote and local subnets.

ip access-list extended ipsec-acl
 permit ip 172.16.1.0 0.0.0.255 192.168.1.0 0.0.0.255

6. Create a crypto map and link it to the previously created transform-set and access-list.

crypto map ipsec-cm 100 ipsec-isakmp
 set peer 203.0.113.1
 set transform-set ipsec-ts
 match address ipsec-acl
 set security-association lifetime seconds 3600

7. Assign the crypto map to the WAN interface.

interface gi0/0
 crypto map ipsec-cm

8. Exclude the IPsec traffic from being translated by NAT.

ip access-list extended nat-acl
 deny ip 172.16.1.0 0.0.0.255 192.168.1.0 0.0.0.255
 permit ip 172.16.1.0 0.0.0.255 any

ip nat inside source list nat-acl interface gi0/0 overload

9. Write the changes to the startup configuration.

copy running-config startup-config
