Overview

Readers will learn how to configure an EdgeRouter to Load Balance traffic across multiple WAN interfaces using the legacy marking-style method. Have a look at our WAN Load-Balancing article for the newer recommended way to configure Load Balancing.

Table of Contents

1. Configuring Load-Balancing using PBR
2. Port Forwarding and Destination NAT
3. Related Articles

Configuring Load-Balancing using PBR

Back to Top

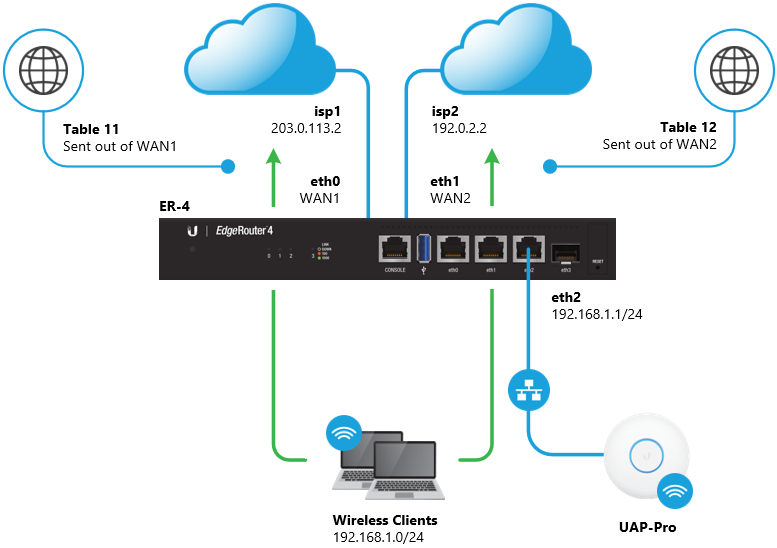

The goal of this load-balancing method is to add packet marking information to two different routing tables. Table 11 will be used for the connection to ISP1 and table 12 will be used for the connection to ISP2.

1. Enter configuration mode.

configure

2. Add the default routes for the main routing table and the two routing tables (11 and 12) that the clients will use.

set protocols static route 0.0.0.0/0 next-hop 192.0.2.2
set protocols static route 0.0.0.0/0 next-hop 203.0.113.2
set protocols static table 11 mark 11
set protocols static table 11 route 0.0.0.0/0 next-hop 192.0.2.2
set protocols static table 12 mark 12
set protocols static table 12 route 0.0.0.0/0 next-hop 203.0.113.2

2. Add the modify firewall rules.

set firewall modify balance rule 10 action modify
set firewall modify balance rule 10 description 'restore mark from connection'
set firewall modify balance rule 10 modify connmark restore-mark

set firewall modify balance rule 20 action accept
set firewall modify balance rule 20 description 'accept the packet if the mark is not zero'
set firewall modify balance rule 20 mark '!0'

set firewall modify balance rule 30 action modify
set firewall modify balance rule 30 description 'for new connections mark 50% with mark 11'
set firewall modify balance rule 30 modify mark 11
set firewall modify balance rule 30 protocol tcp_udp
set firewall modify balance rule 30 state new enable
set firewall modify balance rule 30 statistic probability 50%

set firewall modify balance rule 40 action modify
set firewall modify balance rule 40 description 'for packets with mark zero, mark with 12'
set firewall modify balance rule 40 mark 0
set firewall modify balance rule 40 modify mark 12
set firewall modify balance rule 40 protocol tcp_udp
set firewall modify balance rule 40 state new enable

set firewall modify balance rule 50 action modify
set firewall modify balance rule 50 description 'save the packet mark to the connection mark'
set firewall modify balance rule 50 modify connmark save-mark

3. Apply the firewall rule in the ingress/in direction to the LAN interface.

set interfaces ethernet eth2 firewall in modify balance

4. Commit the changes and save the configuration.

commit ; save

Use the command below to verify the Load Balanced traffic.

show firewall modify statistics
 --------------------------------------------------------------------------------
 IPv4 Firewall "balance"

 Active on (eth2,IN)

 rule packets bytes action description
 ---- ------- ----- ------ -----------
 10 399516 61839166 MODIFY restore mark from connection
 20 366897 59641481 ACCEPT accept the packet if the mark is not zero
 30 16196 1094021 MODIFY for new connections mark 50% with mark 1
 40 16377 1101667 MODIFY for packets with mark zero, mark with 2
 50 32619 2197685 MODIFY save the packet mark to the connection mark
 10000 32619 2197685 ACCEPT DEFAULT ACTION

Port Forwarding and Destination NAT

Back to Top

If Port Forwarding or Destination NAT rules are configured, then new connections are also initiated from the WAN side. In order to keep these new connections on the same interface, mark 11 is added to new connections from ISP1 and mark 12 to new connections from ISP2.

1. Enter configuration mode.

configure

2. Add the modify firewall rules.

set firewall modify ISP1_IN rule 10 description 'use mark 11 for new ISP1 connections'
set firewall modify ISP1_IN rule 10 action modify
set firewall modify ISP1_IN rule 10 modify connmark set-mark 11
set firewall modify ISP1_IN rule 10 protocol tcp_udp
set firewall modify ISP1_IN rule 10 state new enable

set firewall modify ISP2_IN rule 10 description 'use mark 12 for new ISP2 connections'
set firewall modify ISP2_IN rule 10 action modify
set firewall modify ISP2_IN rule 10 modify connmark set-mark 12
set firewall modify ISP2_IN rule 10 protocol tcp_udp
set firewall modify ISP2_IN rule 10 state new enable

3. Apply the firewall rules in the ingress/in direction to the WAN interfaces.

set interfaces ethernet eth0 firewall in modify ISP1_IN
set interfaces ethernet eth1 firewall in modify ISP2_IN

4. Commit the changes and save the configuration.

commit ; save
