EdgeRouter - Policy-Based Site-to-Site IPsec VPN to Azure (IKEv1/IPsec)

Overview

Readers will learn how to configure a Policy-Based Site-to-Site IPsec VPN between a Microsoft Azure VPN gateway and an EdgeRouter. The other VPN options are available when connecting to Azure are:

Microsoft recommends to use Route-Based IKEv2 VPNs over Policy-Based IKEv1 VPNs as it offers additional rich connectivity features. These features include Point-to-Site VPNs, Active Routing Support (BGP), Support for multiple tunnels as well as ECMP with metric routing, Active-Active Azure Gateway configurations for redundancy, Transit Routing with Point-to-Site, DPD detection and Virtual Network Peering.

NOTES & REQUIREMENTS:

Applicable to EdgeOS firmware v1.10.0 and up on all EdgeRouter models. Knowledge of the Command Line Interface (CLI) and advanced networking knowledge is required. Please see the Related Articles below for more information.

More info about Azure VPNs and their requirements can be found here.

Devices used in this article:

EdgeRouter-4 (ER-4)

Configuring a Policy-Based VPN
Setting up the Azure Gateway

Configuring a Policy-Based VPN

The type of VPN that will be created is a Policy-Based over IKEv1/IPsec tunnel.

Follow the steps below to configure the IPsec VPN on the EdgeRouter:

CLI: Access the Command Line Interface.You can do this using the CLI button in the GUI or by using a program such as PuTTY.

1. Enter configuration mode.

configure

2. Enable the auto-firewall-nat-exclude feature which automatically creates the IPsec firewall/NAT policies in the iptables firewall.

set vpn ipsec auto-firewall-nat-exclude enable

3. Create the IKE / Phase 1 (P1) Security Associations (SAs) and set the key-exchange to IKEv1.

set vpn ipsec ike-group FOO0 key-exchange ikev1
set vpn ipsec ike-group FOO0 lifetime 28800
set vpn ipsec ike-group FOO0 proposal 1 dh-group 2
set vpn ipsec ike-group FOO0 proposal 1 encryption aes256
set vpn ipsec ike-group FOO0 proposal 1 hash sha1

4. Create the ESP / Phase 2 (P2) SAs and disable Perfect Forward Secrecy (PFS).

set vpn ipsec esp-group FOO0 lifetime 3600
set vpn ipsec esp-group FOO0 pfs disable
set vpn ipsec esp-group FOO0 proposal 1 encryption aes256
set vpn ipsec esp-group FOO0 proposal 1 hash sha1

NOTE: Azure also supports other encryption and hashing methods. For the full list of supported SAs please see the Microsoft article here.

5. Define the Azure VPN Gateway peering address and set the connection-type to respond.

set vpn ipsec site-to-site peer 192.0.2.1 authentication mode pre-shared-secret
set vpn ipsec site-to-site peer 192.0.2.1 authentication pre-shared-secret <secret>
set vpn ipsec site-to-site peer 192.0.2.1 connection-type respond
set vpn ipsec site-to-site peer 192.0.2.1 description ipsec
set vpn ipsec site-to-site peer 192.0.2.1 local-address 203.0.113.1

ATTENTION: It is of vital importance that the connection-type is set to respond.

6. Link the SAs created above to the Azure peer and define the local and remote subnets.

set vpn ipsec site-to-site peer 192.0.2.1 ike-group FOO0
set vpn ipsec site-to-site peer 192.0.2.1 tunnel 1 esp-group FOO0
set vpn ipsec site-to-site peer 192.0.2.1 tunnel 1 local prefix 192.168.1.0/24
set vpn ipsec site-to-site peer 192.0.2.1 tunnel 1 remote prefix 172.16.0.0/22

7. If you are experiencing MTU issues or TCP sessions not establishing, try lowering the TCP Maximum Segment Size (MSS) to 1350.

set firewall options mss-clamp interface-type all
set firewall options mss-clamp mss 1350

8. Commit the changes and save the configuration.

commit ; save

Setting up the Azure Gateway

The Microsoft Azure side of the Site-to-Site VPN connection is based on this Microsoft article.

GUI: Access the Azure Management Portal.

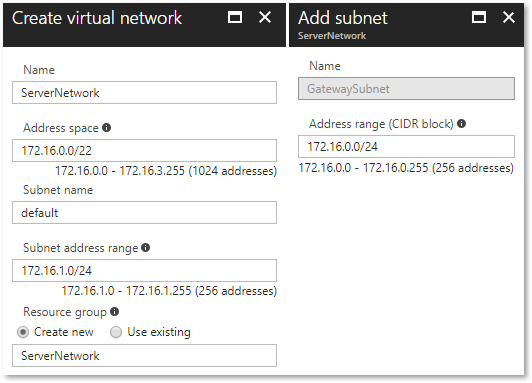

1. Create a Virtual Network.

Dashboard > New > Networking > Virtual Network

Name: ServerNetwork
Address Space: 172.16.0.0/22
Subnet name: default
Subnet Address Space: 172.16.1.0/24
Resource Group: ServerNetwork

2. Create a Gateway Subnet.

Dashboard > Virtual Networks > ServerNetwork > Subnets > + Gateway subnet

Name: GatewaySubnet (Required / cannot be changed)
Address Range: 172.16.0.0/24 (Cannot be the same as the default subnet address space)

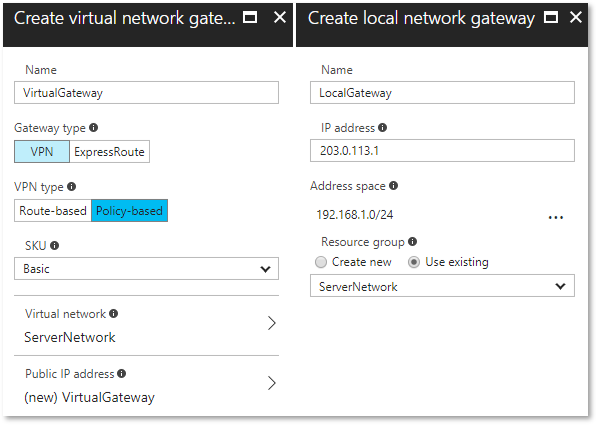

3. Create a Virtual Network Gateway.

Dashboard > New > Networking > Virtual Network Gateway

Name: VirtualGateway
Gateway Type: VPN
VPN Type: Policy-Based
SKU: Basic (depends on usage)
Virtual Network: ServerNetwork
Public IP Address: Create new > VirtualGateway

NOTE: The provisioning process for a new Virtual Gateway will take time. The Gateway Stock-Keeping Unit (SKU) defines the throughput capabilities of the VPN connection.

More info about SKUs can be found in this Microsoft article.

4. Create a Local Network Gateway.

Dashboard > New > Networking > Local Network Gateway

Name: LocalGateway
IP Address: 203.0.113.1
Address Space: 192.168.1.0/24

5. Create a VPN Connection and link the LocalGateway to the VirtualGateway.

Daskboard >Virtual Network Gateways > VirtualGateway > Connections > + Add

Name: IPsecER
Connection Type: Site-to-Site (IPsec)
Virtual Network Gateway: VirtualGateway
Local Network Gateway: LocalGateway
Shared Key: <secret>

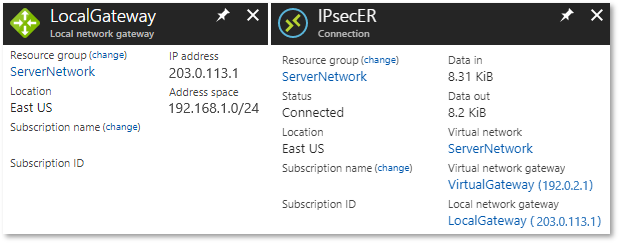

You can verify the Azure Virtual Gateway Connection using the following PowerShell command:

Get-AzureRmVirtualNetworkGatewayConnection -Name "IPsecER" -ResourceGroupName "ServerNetwork"

Name                    : IPsecER
ResourceGroupName       : ServerNetwork
Location                : eastus
ProvisioningState       : Succeeded
ConnectionStatus        : Connected
EgressBytesTransferred  : 3854
IngressBytesTransferred : 3104

NOTE: More info on how to use Windows PowerShell to manage Azure can be found in the this Microsoft article.
