EdgeRouter - Packets Processing

Translated by AI

Overview

This article exemplifies how packets arriving from the WAN and the LAN are processed on the EdgeRouter.

NOTES & REQUIREMENTS:
Applicable to the latest EdgeOS firmware on all EdgeRouter models. Please see the Related Articles below for more information.
Device used in this article:

WAN Incoming Traffic

Back to Top

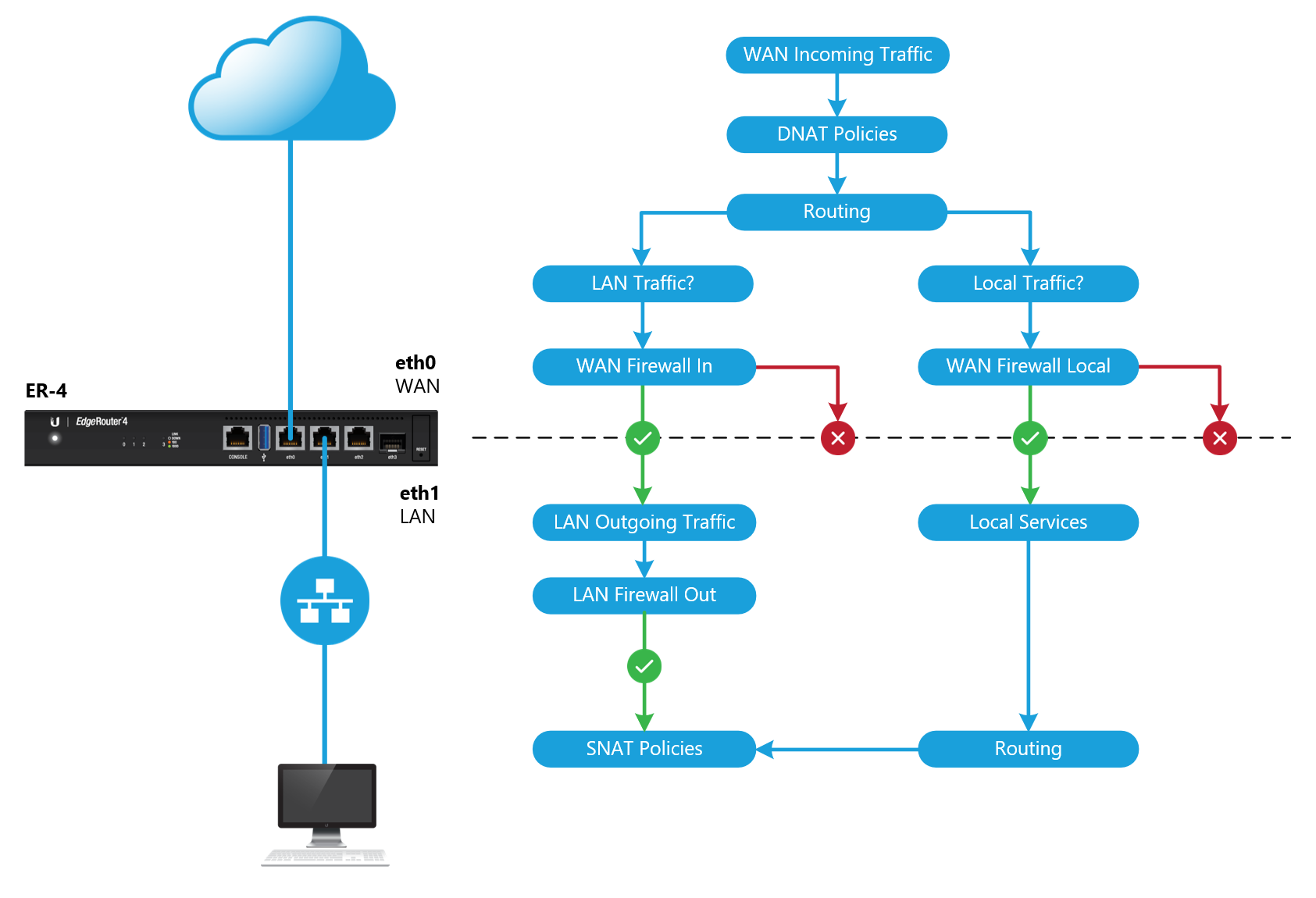

The following diagram shows how packets that arrive from the WAN and are destined for the EdgeRouter (Local) or the LAN (In) are processed.


LAN Incoming Traffic

Back to Top

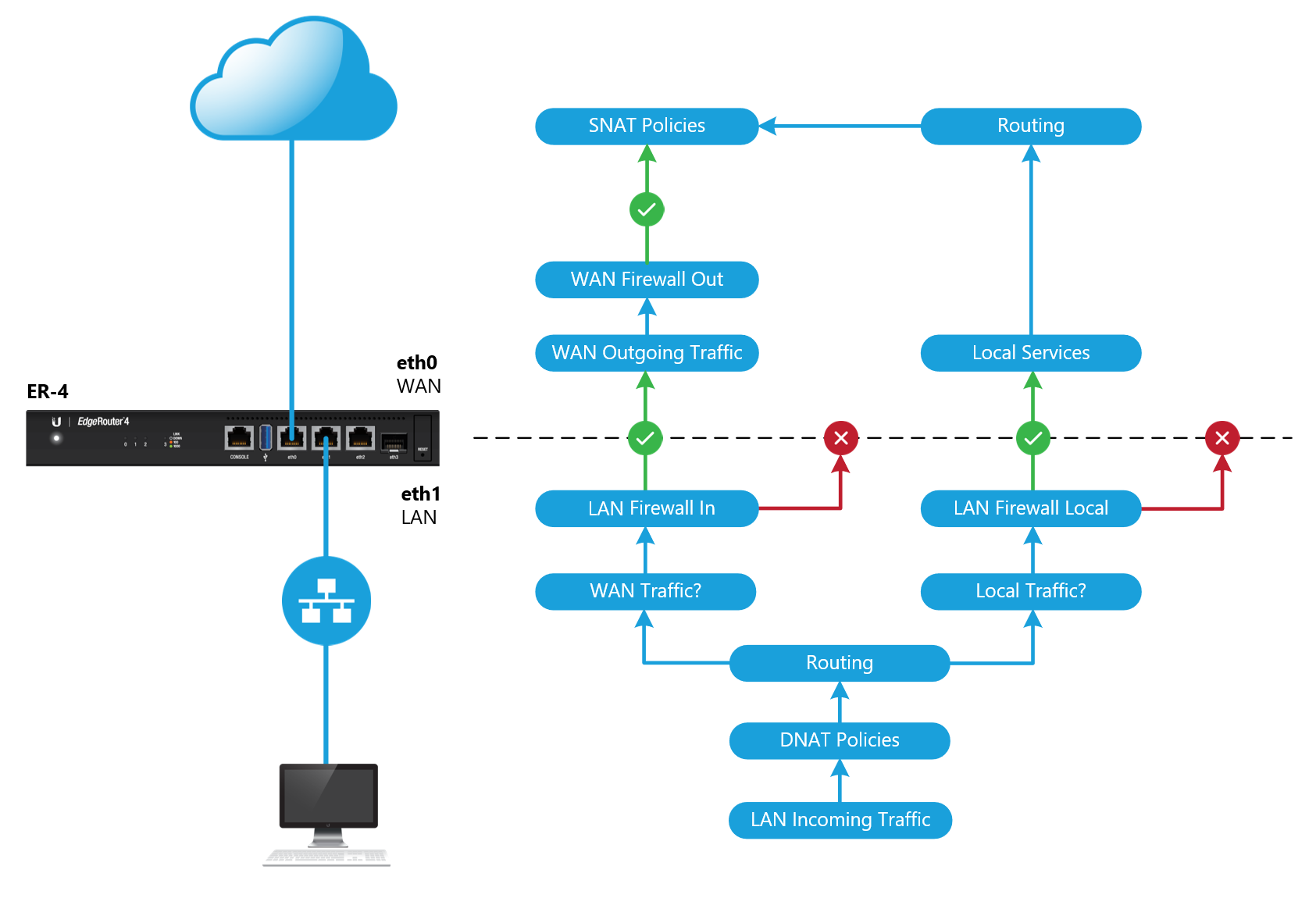

The diagram below shows how packets that arrive from the LAN and are destined for the EdgeRouter (Local) or the WAN are processed .


Related Articles

Back to Top

EdgeRouter - Beginners Guide to EdgeRouter

EdgeRouter - How to Create a WAN Firewall Rule

Intro to Networking - Network Firewall Security
