Overview

Readers will learn how to configure a Policy-Based Site-to-Site IPsec VPN while also translating the traffic using Many-to-One Source NAT.

Table of Contents

1. Frequently Asked Questions (FAQ)
2. Configuring a Policy-Based VPN with Many-to-One Source NAT
3. Related Articles

Frequently Asked Questions (FAQ)

Back to Top

Configuring a Policy-Based VPN with Many-to-One Source NAT

Back to Top

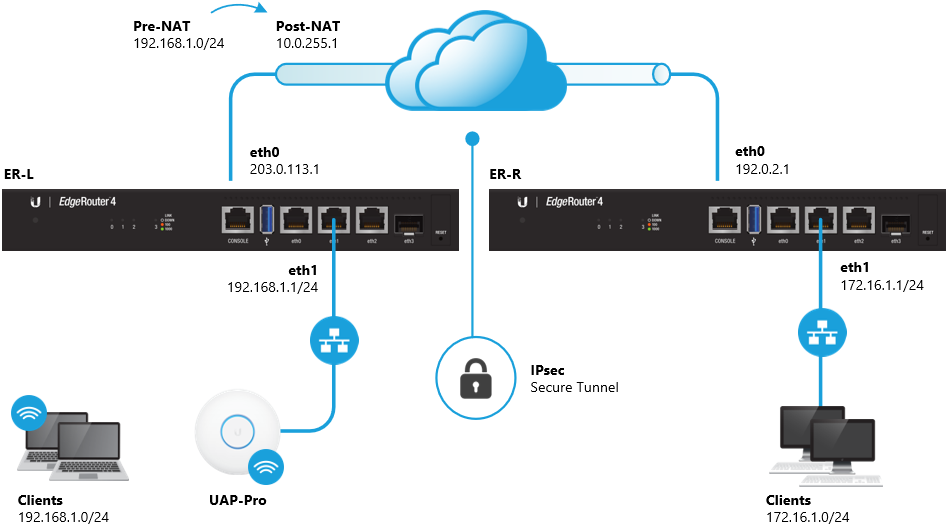

The 192.168.1.0/24 subnet will be translated to the 10.0.255.1 address using NAT Masquerade.

There are NAT four address types, which can be viewed in the NAT translation table:

• Pre-NAT source The local IP address before NAT translation.
• Post-NAT source The local IP address after NAT translation.
• Pre-NAT destination The remote IP address before NAT translation.
• Post-NAT destination The remote IP address after NAT translation.

show nat translations source detail
Pre-NAT src          Pre-NAT dst        Post-NAT src          Post-NAT dst
192.168.1.10:3712    172.16.1.10:3389   10.0.255.1:3712   172.16.1.10:3389
192.168.1.11:1058    172.16.1.10:3389   10.0.255.1:1058   172.16.1.10:3389

1. Enter configuration mode.

configure

2. Disable the auto-firewall-nat-exclude feature.

set vpn ipsec auto-firewall-nat-exclude disable

3. Create the IKE / Phase 1 (P1) Security Associations (SAs).

set vpn ipsec ike-group FOO0 lifetime 28800
set vpn ipsec ike-group FOO0 proposal 1 dh-group 14
set vpn ipsec ike-group FOO0 proposal 1 encryption aes128
set vpn ipsec ike-group FOO0 proposal 1 hash sha1

4. Create the ESP / Phase 2 (P2) SAs and enable Perfect Forward Secrecy (PFS).

set vpn ipsec esp-group FOO0 lifetime 3600
set vpn ipsec esp-group FOO0 pfs enable
set vpn ipsec esp-group FOO0 proposal 1 encryption aes128
set vpn ipsec esp-group FOO0 proposal 1 hash sha1

5. Define the remote peering address (replace <secret> with your desired passphrase).

set vpn ipsec site-to-site peer 192.0.2.1 authentication mode pre-shared-secret
set vpn ipsec site-to-site peer 192.0.2.1 authentication pre-shared-secret <secret>
set vpn ipsec site-to-site peer 192.0.2.1 description ipsec
set vpn ipsec site-to-site peer 192.0.2.1 local-address 203.0.113.1

6. Link the SAs created above to the remote peer and define the local and remote subnets.

set vpn ipsec site-to-site peer 192.0.2.1 ike-group FOO0
set vpn ipsec site-to-site peer 192.0.2.1 tunnel 1 esp-group FOO0
set vpn ipsec site-to-site peer 192.0.2.1 tunnel 1 local prefix 10.0.255.1/32
set vpn ipsec site-to-site peer 192.0.2.1 tunnel 1 remote prefix 172.16.1.0/24

7. Add firewall rules for the IPsec traffic to the WAN_LOCAL firewall policy.

set firewall name WAN_LOCAL rule 30 action accept
set firewall name WAN_LOCAL rule 30 description ike
set firewall name WAN_LOCAL rule 30 destination port 500
set firewall name WAN_LOCAL rule 30 log disable
set firewall name WAN_LOCAL rule 30 protocol udp

set firewall name WAN_LOCAL rule 40 action accept
set firewall name WAN_LOCAL rule 40 description esp
set firewall name WAN_LOCAL rule 40 log disable
set firewall name WAN_LOCAL rule 40 protocol esp

set firewall name WAN_LOCAL rule 50 action accept
set firewall name WAN_LOCAL rule 50 description nat-t
set firewall name WAN_LOCAL rule 50 destination port 4500
set firewall name WAN_LOCAL rule 50 log disable
set firewall name WAN_LOCAL rule 50 protocol udp

set firewall name WAN_LOCAL rule 60 action accept
set firewall name WAN_LOCAL rule 60 description ipsec
set firewall name WAN_LOCAL rule 60 source address 172.16.1.0/24
set firewall name WAN_LOCAL rule 60 destination address 192.168.1.0/24
set firewall name WAN_LOCAL rule 60 log disable
set firewall name WAN_LOCAL rule 60 ipsec match-ipsec

8. Add a firewall rule for the IPsec traffic to the WAN_IN firewall policy.

set firewall name WAN_IN rule 60 action accept
set firewall name WAN_IN rule 60 description ipsec
set firewall name WAN_IN rule 60 source address 172.16.1.0/24
set firewall name WAN_IN rule 60 destination address 192.168.1.0/24
set firewall name WAN_IN rule 60 log disable
set firewall name WAN_IN rule 60 ipsec match-ipsec

9. Add a Source NAT rule that translates the internal range to the 10.0.255.1 address.

set service nat rule 5000 destination address 172.16.1.0/24
set service nat rule 5000 outbound-interface eth0
set service nat rule 5000 protocol all
set service nat rule 5000 outside-address address 10.0.255.1
set service nat rule 5000 source address 192.168.1.0/24
set service nat rule 5000 type source

10. Commit the changes and save the configuration.

commit ; save

1. Define the IPsec peer and hashing/encryption methods.

VPN > IPsec Site-to-Site > +Add Peer

• Check: Show advanced options
• Check: Automatically open firewall and exclude from NAT

Peer: 192.0.2.1
Description: IPsec
Local IP: 203.0.113.1
Encryption: AES-128
Hash: SHA1
DH Group: 14
Pre-shared Secret: <secret>
Local subnet: 172.16.1.0/24
Remote subnet: 10.0.255.1/32
